This kind of product is mainly used in the pipeline with gas or fluid medium to work as an open and close device to connect or cut off the medium flow. It is not applicable to regulate the medium flux. It has the features of small flow resistance, easy open and close, etc.
This kind of product is mainly used in the pipeline with gas or fluid medium to work as an open and close device to connect or cut off the medium flow. It is not applicable to regulate the medium flux. It has the features of small flow resistance, easy open and close, etc.

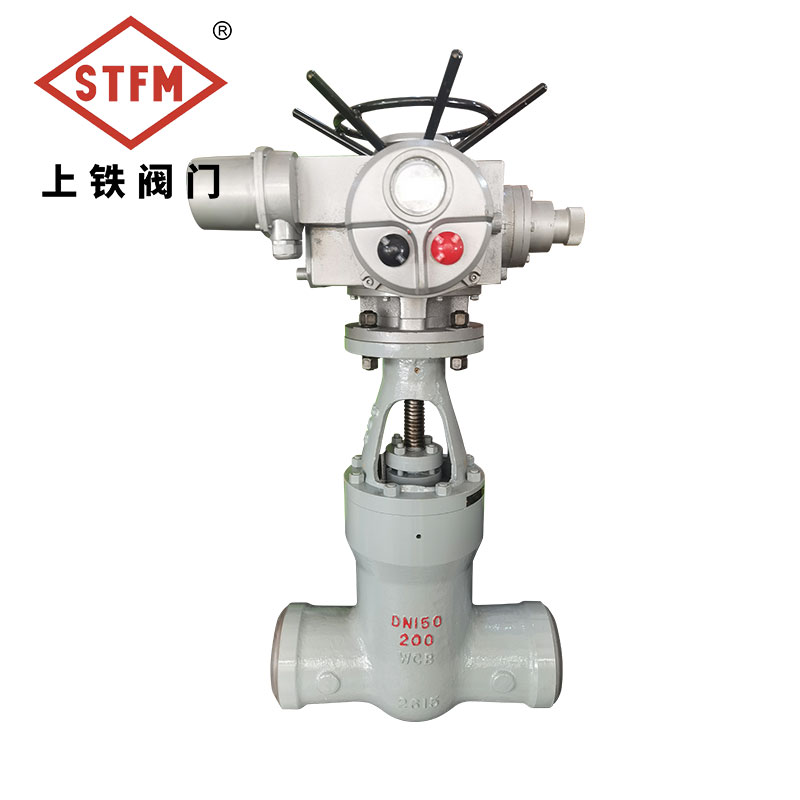

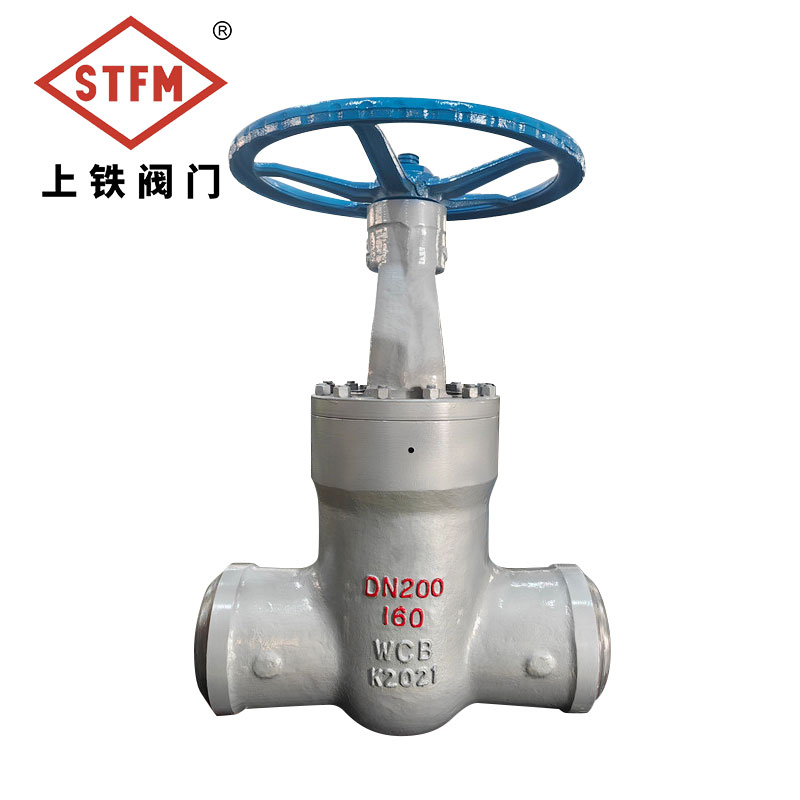

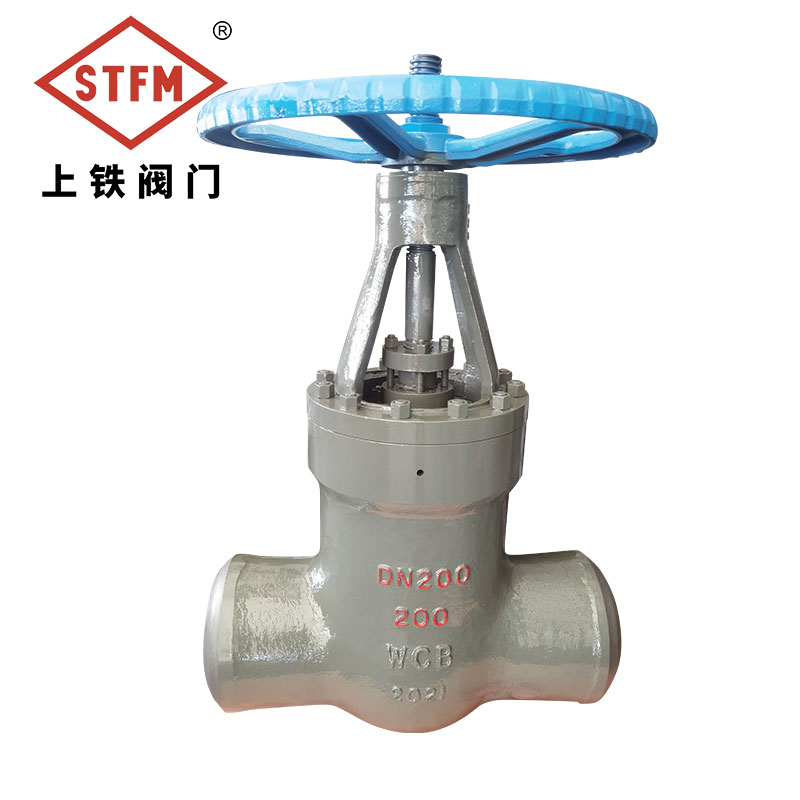

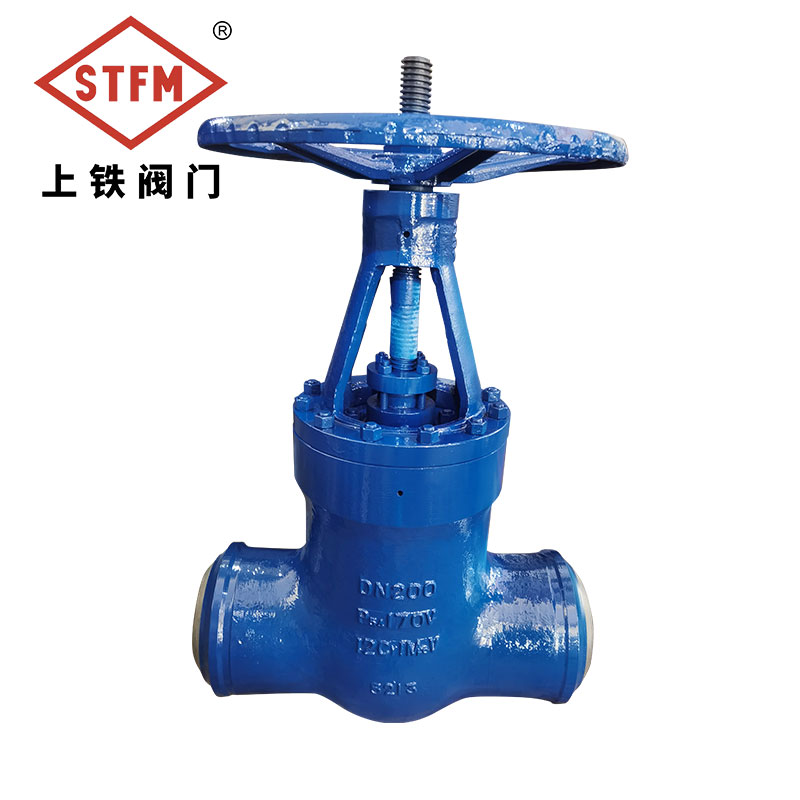

American standard power station gate valve structure characteristics
① Adopting flexible wedge gate, the closing torque is small and easy to seal, also will not cause wedge off easily when the temperature changes.
Adopting replaceable back seat structure, it can assistant the packing seal, and maintain easily.
② This valve adopts welded connected seat with simple technique.
③ The middle path of the valve is adopting self-sealing structure, which can seal more effectively.
④ The sealing face is welded with abrasion-proof material which can strengthen the sealing performance and lengthen the usage life.
American standard power station valve execution standard
Design and manufacture standard: ASME B16.34-2004
Inspection and test standard: ASME B16.34-2004
Welding end dimension standard: ASME B16.25-2003
The face to face dimension standard: ASME B16.10 -2000
